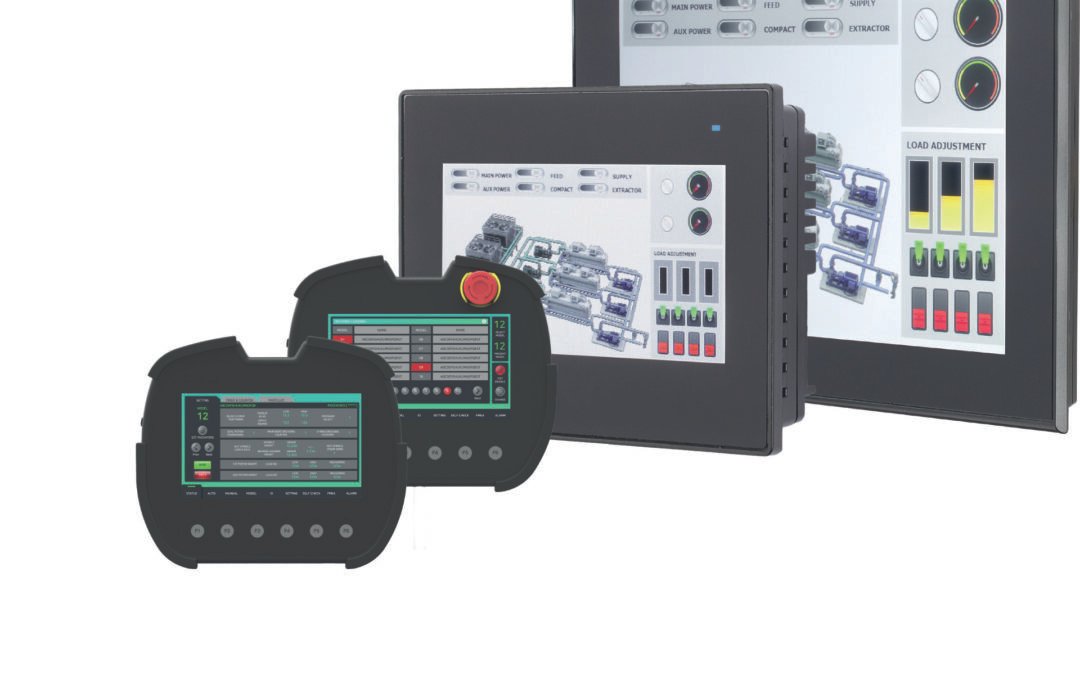

HMI iRis IMO

HMI iRis IMO

HMI iRis IMO

HMI iRis di IMO ridefinisce le aspettative verso una moderna interfaccia uomo-macchina nell’automazione industriale. Superando i limiti degli HMI convenzionali, offre connettività avanzata, funzionalità intelligenti e prestazioni affidabili, il tutto all’interno di una piattaforma sicura e scalabile.

Progettato per integrarsi senza sforzo con un’ampia gamma di dispositivi e sistemi di controllo, l’HMI della serie iRis supporta uno scambio dati fluido e un monitoraggio in tempo reale, consentendo di prendere decisioni più intelligenti all’interno dell’ambiente di produzione. L’architettura flessibile gli permette di adattarsi sia ad applicazioni semplici sia a operazioni complesse e guidate dai dati, rendendolo una base affidabile per le iniziative di trasformazione digitale.

Con un forte focus sulla stabilità e sulla sicurezza informatica, la serie iRis garantisce una continuità operativa nei contesti industriali più esigenti, salvaguardando al contempo i dati critici del sistema. Questo lo rende la scelta ideale per i produttori che desiderano migliorare l’efficienza, ridurre i tempi di fermo macchina e rendere le proprie attività a prova di futuro.

La sua versatilità si estende a un ampio spettro di settori. L’HMI della serie iRis riscuote la massima fiducia in settori ad alta precisione come la produzione di semiconduttori e display, supportando al contempo industrie in rapida crescita e ad alta domanda, tra cui i settori automobilistico, dei dispositivi mobili, dello stoccaggio energetico, farmaceutico e dei bioprocessi.

Sia che venga distribuito in fabbriche intelligenti avanzate o in impianti di produzione in continua evoluzione, l’HMI della serie iRis fornisce le prestazioni, la flessibilità e la sicurezza necessarie per guidare la produttività e sostenere la crescita a lungo termine.

IMO i3AX/BX

Features of IMO I3AX/BX




The IMO I3AX/BX is an all -in-one industrial control device. It combines control, user interface, I/O and networking into a single, integrated package. Unique features of the I3AX/I3BX include:

• Bright, graphical LCD display (in i3AX) (with touch sensing in i3BX)
• Display of complex graphical objects including trends, gauges, meters and animations
• Advanced control capabilities including floating point, multiple auto-tuning PID loops and stringhandling capabilities
• Removable media for up to two TB of storage of programs, data logging or screen captures
• iCAN networking port for communication with remote I/O, other controllers or PCs.
• Ethernet port for communication with other controllers, drives, pc’s etc.
• Configurable serial protocols for communication to drives, PLCs, or other serial peripherals
• USB 2.0 Full speed port for programming and monitoring.
• Full featured, built-in I/O including high resolution analog, thermocouple, RTD, high speed counters,PWM outputs andrelays (depending upon the I3AX/I3BX model used)
• I3 Configurator programming software that allows all aspects of the I3AX/I3BX to be programmed and configured from one integrated application
• Optional communication add-on modules that allow additional capabilities such as modems.
• Fail–Safe System which allows an application to continue running in the event of “Soft” failures
such as (Battery power loss or Battery Backed register RAM / Application Flash corruption)
• Clone Unit allows the user to “clone” the i3 controller of the exact same model. This feature “clones” application program
and unit settings stored in Battery backed RAM of an i3 controller. It can then be used to clone a different i3 controller (exact same model)

IMO i3AX

128 x 64 Monochrome LCD Display
MicroSD™ Data storage Real Time Clock
1 CAN Port, 2 RS-232 / RS-485
1 Integral Ethernet Port
Addressable function keys
256kB RAM (Program), 16MB (Graphical) IP65 (NEMA4X)
10 – 30 VDC Power Supply Free Configuration Software Remote I/O Communication
Optional – Modem (SMS, GSM, GPRS)
Supports i3RMI Webserver Functionality

IMO i3BX

240 x 128 Monochrome LCD Display
High Resolution Resistive Touch Screen MicroSD™ Data storage
Real Time Clock
1 CAN Port, 2 RS-232 / RS-485
1 Integral Ethernet Port
Addressable function keys
256kB RAM (Program), 16MB (Graphical) IP65 (NEMA4X)
10 – 30 VDC Power Supply Free Configuration Software Remote I/O Communication
Optional – Modem (SMS, GSM, GPRS)
Supports i3RMI Webserver Functionality

Compact Physical Design

The small, dense design of the i3AX/i3BX enables you to fit more in your panel, saving space and resources. For an introductory i3 Series product, the i3AX/i3BX packs a big picture into an overall small package, utilizing a standard quarter DIN (92x92mm) cut out

Flexible I/O Configuration

The i3AX/i3BX is engineered with up to five unique built-in I/O configurations all of which include high speed counting capabilities – a truly advantageous feature for such a small package! If the built-in I/O of the i3 isn’t enough for your specific application, you can easily expand via CAN or Ethernet or serial. With thousands of external I/O combinations through several additional networking media, the wide scope of digital and analogue I/O make automating your applications, and your organization, as simple as the push of a button

Extensive Control & HMI Features

Many of the features found in more high-end controllers are available in our i3 controller. The i3 utilizes a sunlight readable backlit touchscreen (good for dark and sunlight), physical keys for buttons, and a strong graphical user interface which deeply integrates the HMI into the control system. Some of the strengths and benefits of the i3 are Datalogging: massive data storage for later analysis or recall; Scheduling: easily enable period and time-based measurements/events; includes standard real time clock; Floating point and advanced math: comprehensive functions easily perform complex mathematical processing; Multi language support: easily integrate into diverse markets through one product; custom fonts for different languages, symbols, or sizes

Comprehensive Connectivity

The level and scope of connectivity within the i3 is unprecedented with built-in Ethernet, CAN, USB and serial ports, making communication to other systems seamless and easy. The i3 employs an array of physical connections, as well as a host of protocols enabling communication in a multitude of network layers allowing the unit to communicate with various equipment within different industrial manufactured components

HMI serie iView IMO

La nuova gamma dei pannelli IMO HMI iView si presenta con cinque modelli con dimensioni dello schermo di 4.3 , 7.0“, 10.4 , 12.1″ e 15.0
Due le serie disponibili: la serie M per applicazioni meno esigenti, e la serie H, dotata di maggiore capacità di memoria per applicazioni più gravose
Ogni pannello IMO HMI iView è dotato di tecnologia TFT LCD Touch screen resistivo a 65535 colori, processore basato su architettura ARM. Un design molto compatto ed elegante, abbinato a molteplici possibilità di comunicazione, grazie alle numerose porte incorporate: 2 USB, 1 Ethernet, 3 seriali e una micro SD fino a 16GB.
Porte-comunicazione-iView
Queste caratteristiche consentono di connettersi a stampanti, tastiere o mouse, e dati di archiviazione su una Micro SD card o chiavetta USB.
Ricco di funzioni di comunicazione, iView consente inoltre una connettività remota tramite il server VNC a protocolli Ethernet come BACnet / IP, Profinet / IP Modbus TCP / IP o protocolli seriali Modbus RTU, BACnet, Siemens MPI
